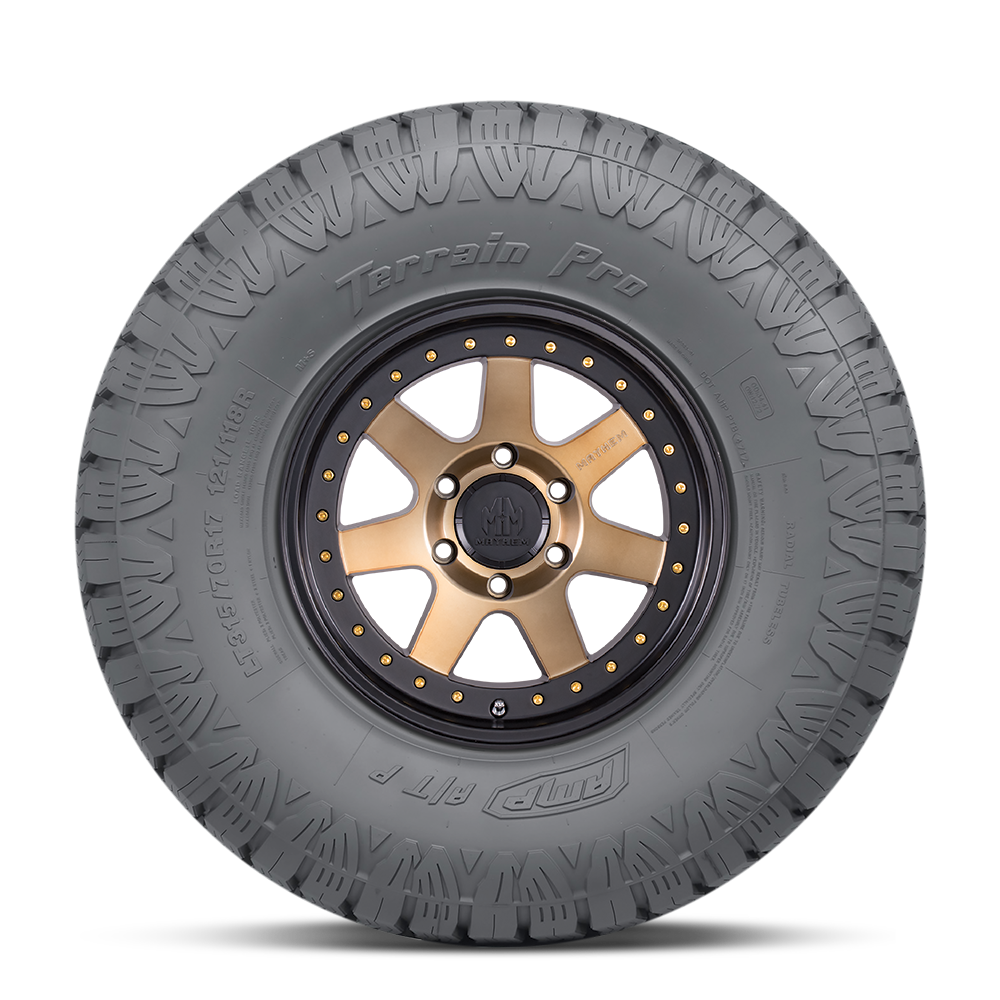

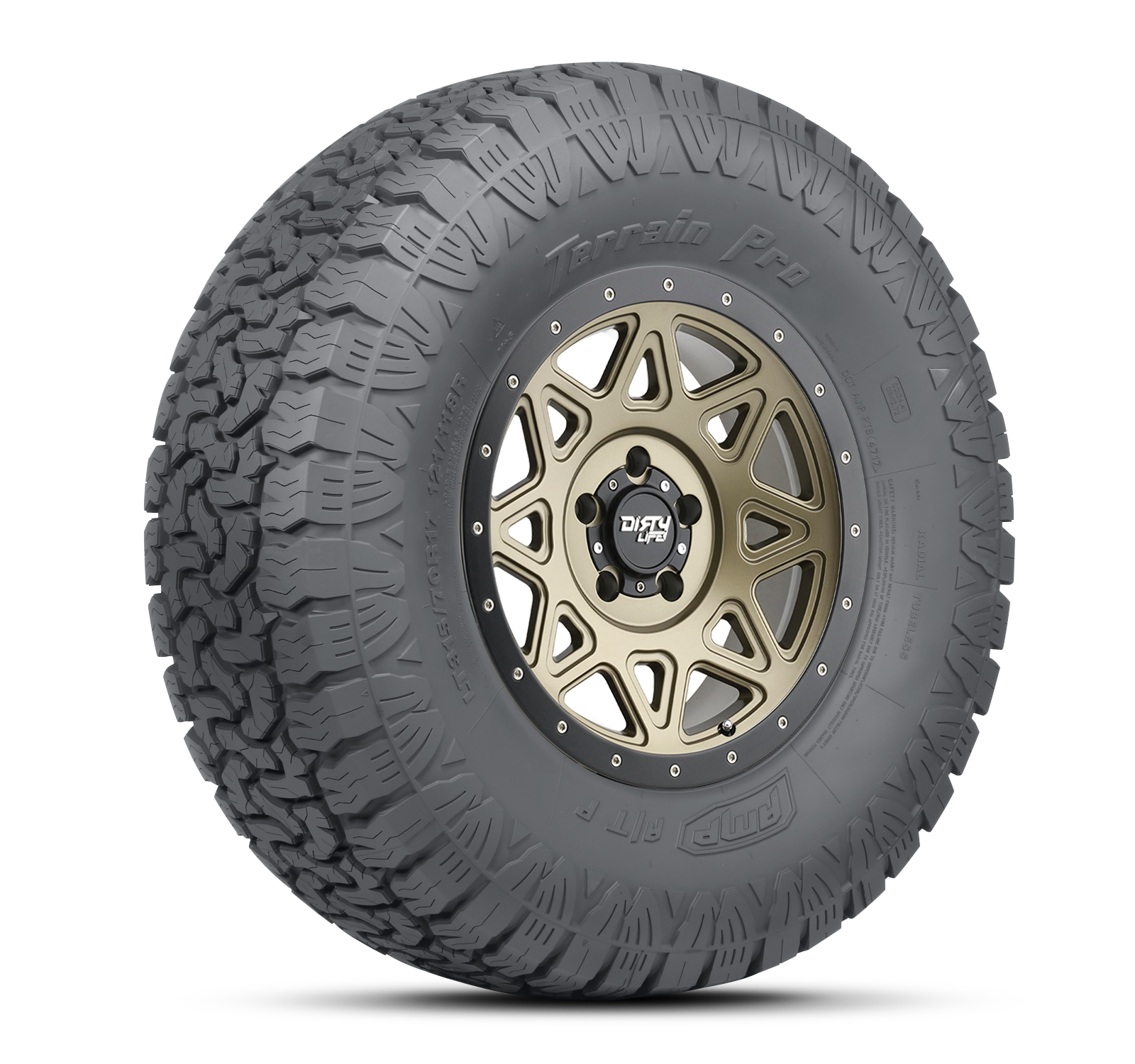

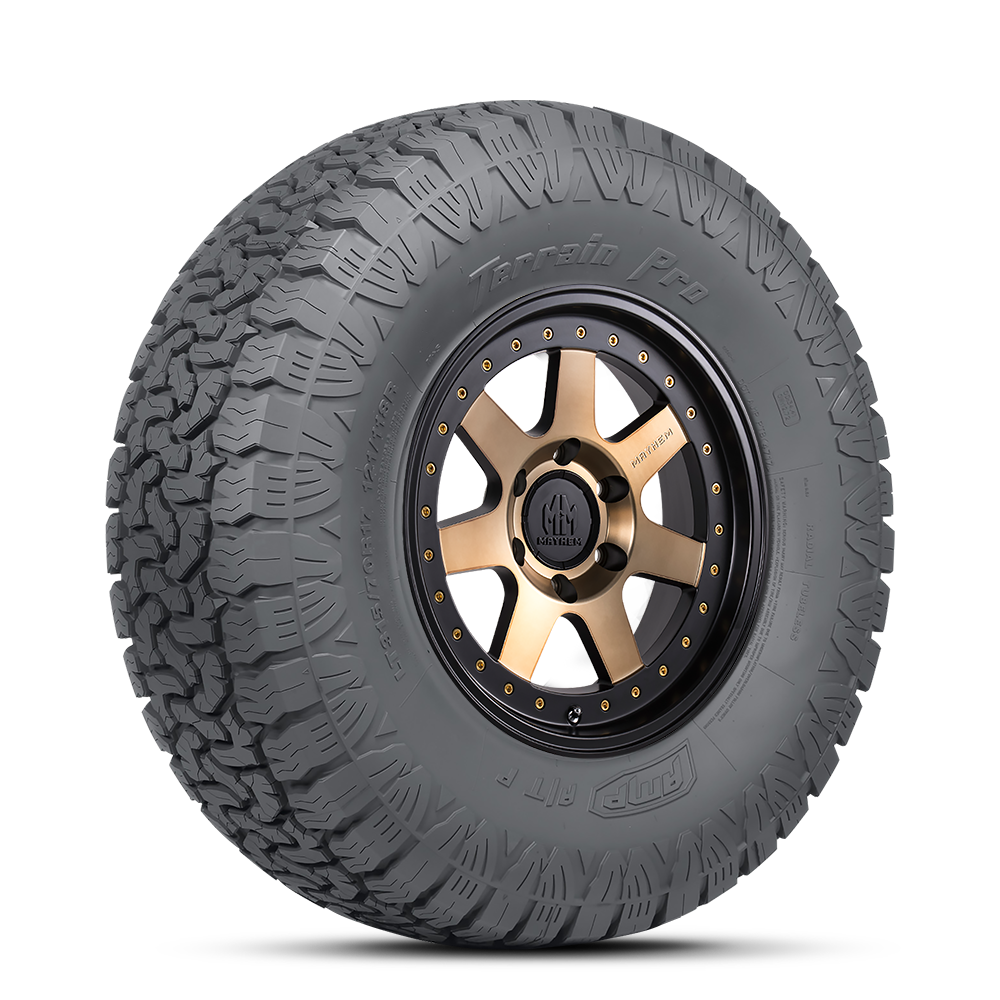

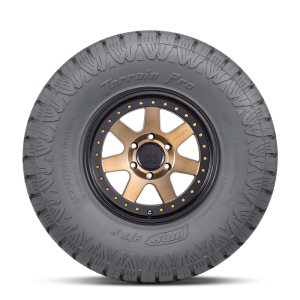

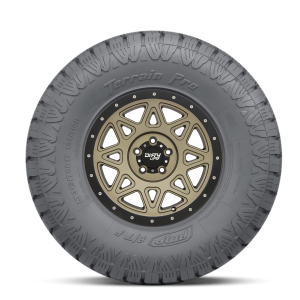

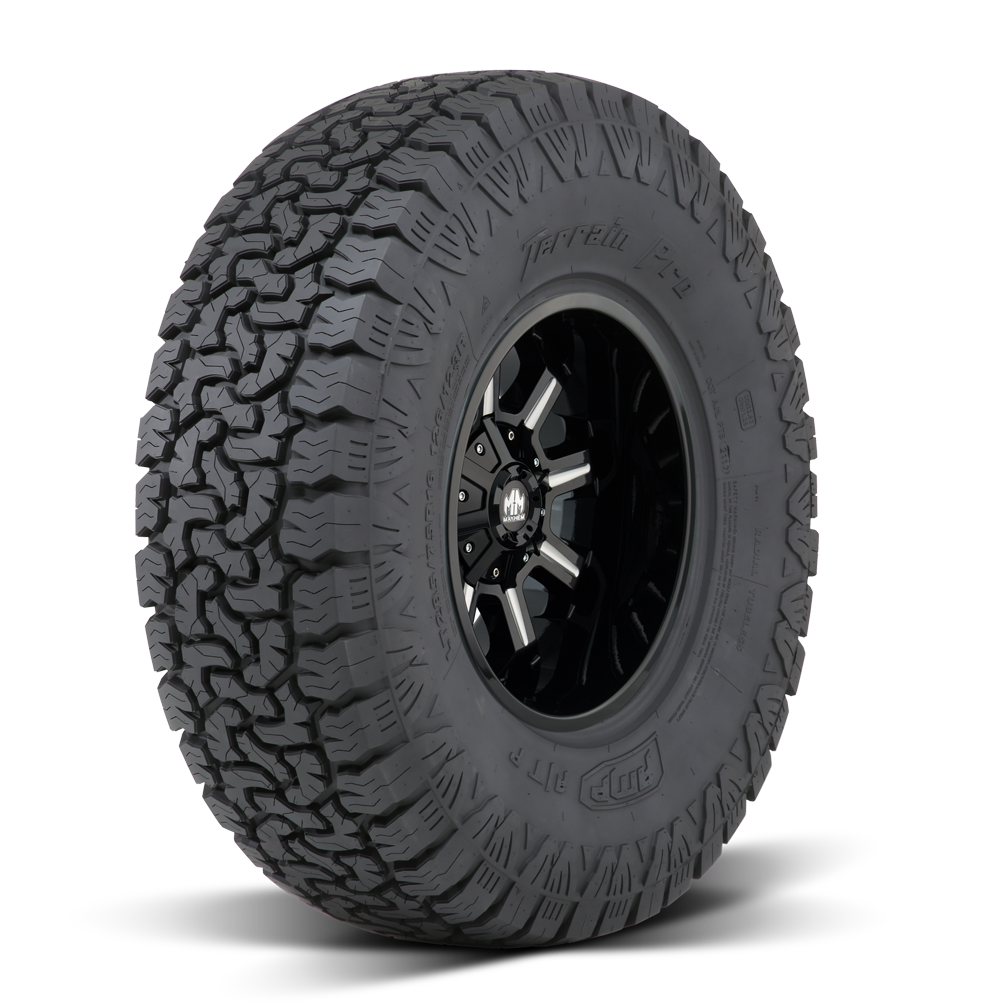

The all-new AMP Terrain Pro A/T delivers a longer tread life and withstands demanding environments. With deep, multi-function tread grooves it provides enhanced traction in a wide variety of conditions while delivering a smooth and controlled ride. A broad selection of sizing and a 60,000 mile warranty drive the Terrain Pro A/T to be the leader of the pack.

Features:

TreadDesign_ATP
Advanced compound prevents chipping and delivers a longer tread life with more consistent contact surface to deliver a smooth and controlled ride.



Sidewall_ATP

Unique “twin peaks” sidewall and open shoulder design delivers assertive performance in every condition and help evacuate water and mud for improved traction



LinearSipes_ATP

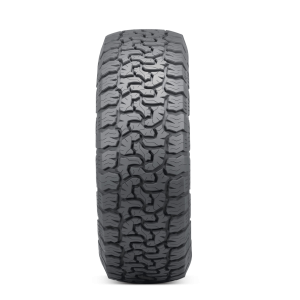

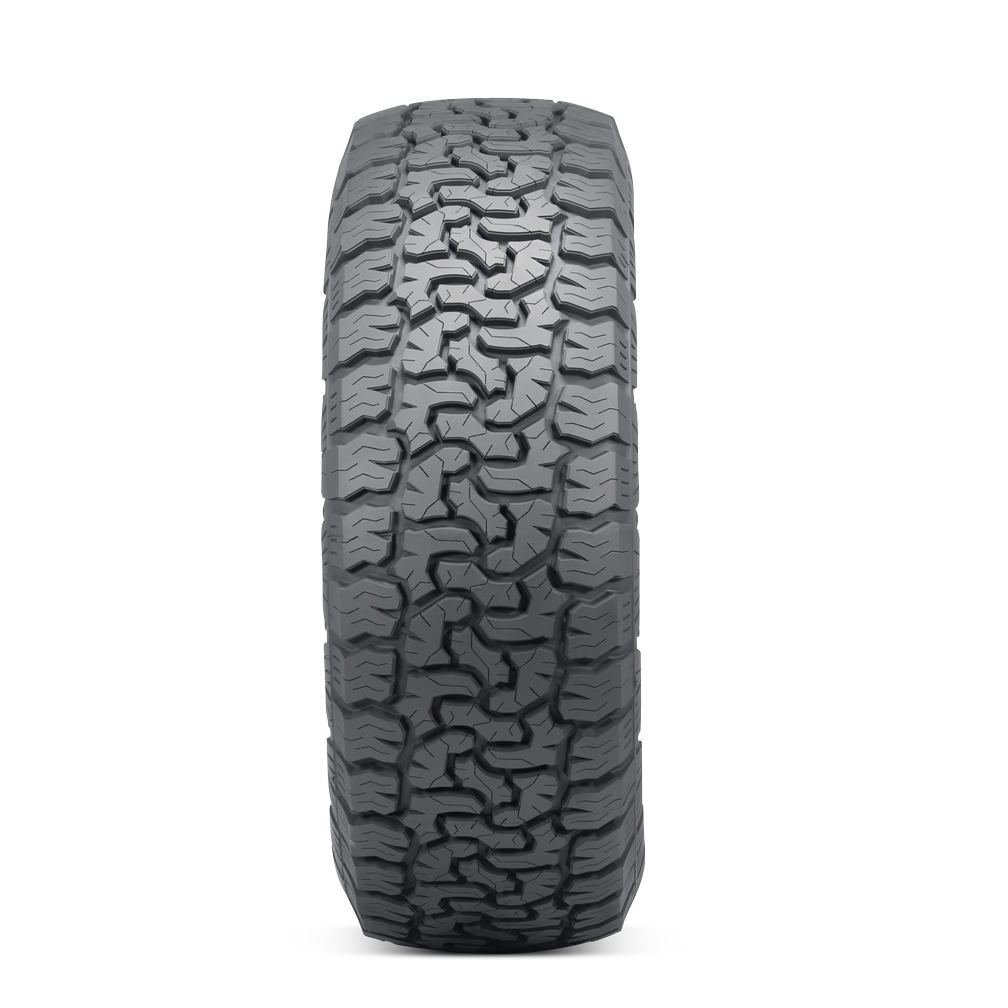

Stepped tread blocks allow more stable control and multi-direction sipes create greater traction



TreadGrooves_ATP

Deep grooves and rock ejectors keep tread grooves free of mud, dirt, and gravel while mitigating possible punctures



Part No.  Size Pattern Diameter Speed Load Range Weight (lbs) Tread Depth (1/32 in) Overall Diameter Overall Width Max. Load Single Max. Press. Single Tread Construction Sidewall Construction Approved Rim Width Range
285-7516AMP/CA2 LT285/75R16 TERRAIN PRO A/T 16 126/123R E 54.52 15.1 32.83 11.26 3,750 LBS. / 3,415 LBS 80 PSI 2P+2S+1N 2P 7.5-9.0
265-7017AMP/CA2 LT265/70R17 TERRAIN PRO A/T 17 121/118S E 47.74 15.1 31.65 10.71 3,195 LBS. / 2,910 LBS 80 PSI 2P+2S+1N 2P 7.0-8.5
285-7017AMP/CA2 LT285/70R17 TERRAIN PRO A/T 17 121/118R E 54.56 15.1 32.76 11.50 3,195 LBS. / 2,910 LBS 80 PSI 2P+2S+1N 2P 7.5-9.0
315-7017AMP/CA2 LT315/70R17 TERRAIN PRO A/T 17 121/118R E 65.23 15.1 34.41 12.72 3,195 LBS. / 2,910 LBS 65 PSI 2P+2S+1N 2P 8.0-11.0
275-7018AMP/CA2 LT275/70R18 TERRAIN PRO A/T 18 122/125R E 60.06 15.75 33.19 10.98 3640LBS/3305LBS 80PSI 2P+2S+1N 2P 7.0-8.5
285-6518AMP/CA2 LT285/65R18 TERRAIN PRO A/T 18 125/122R E 56.23 15.75 32.56 11.50 3,640 LBS. / 3,305 LBS 80 PSI 2P+2S+1N 2P 8.0-10.0
325-6518AMP/CA2 LT325/65R18 TERRAIN PRO A/T 18 127/124R E 64.13 15.75 34.61 13.03 3,860 LBS. / 3,525 LBS 65 PSI 2P+2S+1N 2P 9.0-12.0
265-6020AMP/CA2 LT265/60R20 TERRAIN PRO A/T 20 121/118S E 51.50 15.1 32.52 10.71 3,195 LBS. / 2,910 LBS 80 PSI 2P+2S+1N 2P 7.5-9.5
275-5520AMP/CA2 LT275/55R20 TERRAIN PRO A/T 20 115/112S D 55.22 15.75 31.89 11.18 2680LBS/2470LBS 65PSI 2P+2S+1N 2P 7.5-9.5
275-6020AMP/CA2 LT275/60R20 TERRAIN PRO A/T 20 123/120S E 55.97 15.75 32.99 10.98 3,415 LBS. / 3,085 LBS 80 PSI 2P+2S+1N 2P 7.5-9.5
275-6520AMP/CA2 LT275/65R20 TERRAIN PRO A/T 20 126/123S E 55.00 15.1 34.09 10.98 3,750 LBS. / 3,415 LBS 80 PSI 2P+2S+1N 2P 7.5-9.5
285-5520AMP/CA2 LT285/55R20 TERRAIN PRO A/T 20 122/119S E 55.84 15.75 32.36 11.69 3,305 LBS. / 3,000 LBS 80 PSI 2P+2S+1N 2P 8.0-10.0
285-6020AMP/CA2 LT285/60R20 TERRAIN PRO A/T 20 125/122S E 55.31 15.1 33.46 11.50 3,640 LBS. / 3,305 LBS 80 PSI 2P+2S+1N 2P 8.0-10.0
295-6520AMP/CA2 LT295/65R20 TERRAIN PRO A/T 20 129/126R E 66.66 15.5 35.12 11.77 4080LBS/3750LBS 80PSI 2P+2S+1N 2P 8.0-10.0
305-5520AMP/CA2 LT305/55R20 TERRAIN PRO A/T 20 121/118S E 62.17 15.75 33.23 12.44 3,195 LBS. / 2,910 LBS 65 PSI 2P+2S+1N 2P 8.5-11.0
33-125020AMP/CA2 33X12.50R20LT TERRAIN PRO A/T 20 114S E 61.71 15.75 32.52 12.50 2600LBS 65PSI 2P+2S+1N 2P 8.5-11.0
35-125020AMP/CA2 35X12.50R20LT TERRAIN PRO A/T 20 121S E 66.00 15.5 34.52 12.50 3195LBS 65PSI 2P+2S+1N 2P 8.5-11.0
325-6020AMP/CA2 LT325/60R20 TERRAIN PRO A/T 20 126/123S E 68.13 15.75 35.35 13.03 3,750 LBS. / 3,415 LBS 65 PSI 2P+2S+1N 2P 9.0-12.0
285-4522AMP/CA2 LT285/45R22 TERRAIN PRO A/T 22 117R D 52.76 15.75 32.09 11.22 2835LBS 65PSI 2P+2S+1N 2P 9.0-10.5
285-5522AMP/CA2 LT285/55R22 TERRAIN PRO A/T 22 124/121R E 60.74 15.5 34.37 11.69 3525LBS/3195LBS 80PSI 2P+2S+1N 2P 8.5-10.0
295-5022AMP/CA2 LT295/50R22 TERRAIN PRO A/T 22 122/119S E 63.40 15.75 33.66 12.17 3,305 LBS. / 3,000 LBS 80PSI 2P+2S+1N 2P 9.5
305-3524AMP/CA2 P305/35R24 TERRAIN PRO A/T 24 112S Extra Load 49.17 14.38 32.52 12.17 2469LBS 50PSI 2P+2S+1N 2P 10--12
33-125024AMP/CA2F 33x12.50R24LT TERRAIN PRO A/T 24 106R F 56.23 15.75 32.52 12.60 2095LBS 80PSI 2P+2S+1N 2P 10.5-12.5
35-125024AMP/CA2F 35X12.50R24LT TERRAIN PRO A/T 24 116R F 62.74 15.75 34.52 12.45 2755LBS 80PSI 2P+2S+1N 2P 10--12
